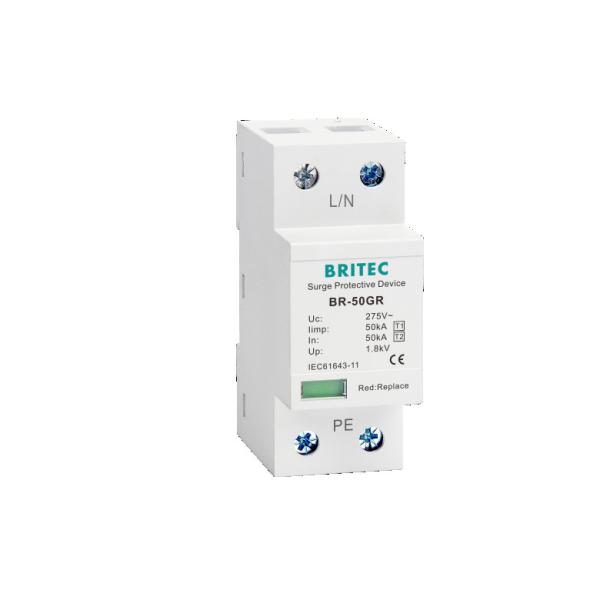

BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection

Name: BR50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection
Brand: BRITEC
Price: 1 USD

Wholesale BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection from china suppliers

Brand Name : BRITEC

Model Number : BR-50GR 275 1P

Certification : TUV/CB/CE/ROHS/ISO9001

Place of Origin : China Zhejiang

MOQ : 1 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 50000 Piece/Pieces Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : EXPORT PACKING

Item Name : Surge protection device

Class : Type 1

Material : Thermoplastic UL94-V0

Place of origin : Zhejiang, China (Mainland)

Mounting Type: DIN rail : DIN rail 35 mm

Brand name : BRITEC

Certificate : TUV/CE/ROHS/ISO9001

Tu : -40℃-80℃

Packing : Carton

Imax : 200kA

Uc : 275V

Contact Now

50 kA Surge Protection Devices single surge protector type 1 SPD

Surge Protection Devices Features:

Benefits

The impulse current of 50kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection

The early creation of the electric arc by its electronic ignition device reduces the protection level Up to an optimum value of 1.8kV

Surge Protection Devices Technology characteristic:

Specification	BR-50GR 1P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Norminal discharge current (8/20µs) In	50kA
Maximun discharge current (8/20µs) Imax	200kA
Voltage protection level Up	≤1.8kV
Follow current extinguishing capability a.c. lifi	3kA rms
Max. backup fuse	500A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	CB/CE/ROHS/ISO9001
Logo	Customized logo available
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Surge Protection Devices Dimension:

BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection

Products features:

1. Pluggable module, easy for installation and maintenance

2. High discharge capacity, quick response

3. Double thermal disconnection devices, providing more reliable protection

4. Green window will change when fault and also provide remote alarm control at the same time

Advantage:

• Unique designing, patent technology.

• High discharge capacity.

• Low residual voltage.

• DIN rail mountable and ease of installation.

• Quick thermal response self-protected design.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Installation:

• Installed at the entrance point of the building, in the main distribution board of this installation.

• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are

installed.

• Must install SPD strictly according to the wiring diagram provided.

• Better to under the guidance of professional electrician.

• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.

Shipping:

Company information:

Britec Electric Wenzhou Co., Ltd. is located in the Yueqing city. Britec is dedicated to development,

manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed

regional economy and friendly investment environment ensure Britec’s sustainable developments and

continuous innovations. It is professional in producing SPD.

BR-50GR 275 1P 50kA Surge Protection Device Lightning Arresters lightning protection

FAQ:

Q1. Are you manufacturer or trading office?

A: We are manufacturer in Wenzhou, with the ability to export by ourselves.

Q2: Do you support OEM or ODM?

A: Yes, we support OEM & ODM.

Q3: How's your product markets?

A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win

us a good reputation.

Q4. How’s your warranty?

A: All our products are 5 years warranted.
