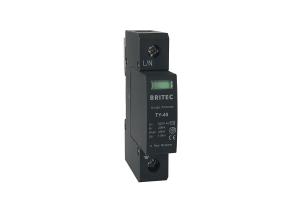

35mm Type 2 Surge Arrester DIN Rail Surge Protector 1P
Product Features
- Protection class: Type 2, Class II
- Pole number: 1P
- Max. continuous operating voltage (Uc) (AC): 150V / 275V / 320V / 385V / 440V
- Nominal discharge current (8/20μs) (In): 20kA
- Max. discharge current (8/20μs) (Imax): 40kA
- Width of one pole: 18mm
- Remote contacts: available
- High performance varistor with thermal disconnection tripping device
Technical Specifications
| Model |
BR-40 150 1P |
BR-40 275 1P |
BR-40 320 1P |
BR-40 385 1P |
BR-40 440 1P |
| SPD classification (EN61643-11) |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
Type 2 |
| SPD classification (IEC61643-11) |
Class II |
Class II |
Class II |
Class II |
Class II |
| Max. continuous operating voltage Uc |
150V |
275V |
320V |
385V |
440V |
| Nominal discharge current In |
20kA |
20kA |
20kA |
20kA |
20kA |
| Max. discharge current Imax |
40kA |
40kA |
40kA |
40kA |
40kA |
| Voltage protection level Up |
≤0.8kV |
≤1.3kV |
≤1.5kV |
≤1.8kV |
≤2.0kV |
| Voltage protection level 5kA Up |
≤0.6kV |
≤1kV |
≤1.2kV |
≤1.3kV |
≤1.5kV |
| Max. backup fuse |
100A gG |
100A gG |
100A gG |
100A gG |
100A gG |
| Response time tA |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
≤25ns |
| Operating temperature range Tu |
-40°C - 80°C |
-40°C - 80°C |
-40°C - 80°C |
-40°C - 80°C |
-40°C - 80°C |
| Cross-section area (Min.) |
4mm² |
4mm² |
4mm² |
4mm² |
4mm² |
| Cross-section area (Max.) |
35mm² |
35mm² |
35mm² |
35mm² |
35mm² |
| For mounting on |
35mm DIN rail |
| Enclosure material |
Thermoplastic UL94-V0 |
| Degree of protection |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
| Operating state / fault indication |
green / red |
green / red |
green / red |
green / red |
green / red |
Product Dimensions
Applications
- Protects low-voltage consumer installations against indirect lightning discharges
- Installation in LEMP zone: LPZ1 - LPZ2 as per IEC 62305
- Provides protection to electrical/electronic equipment against overvoltage spikes and disturbances
- Suitable for second stage protection in supply distribution panels with Type 1 protection upstream
- First stage protection in commercial applications not exposed to direct strikes
Product Advantages
- Patented casing design for enhanced durability
- Advanced high-energy MOV technology
- Window color indicates working condition at a glance
- OEM & ODM services available
- Custom production according to customer requirements
- Plug-in module/base design for easy replacement without rewiring
