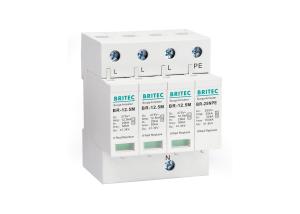

Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Class B+C Surge Arresters
Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Product Description:
• BR-12.5M is surge arrester type 1+2 and class I+II according to EN 61643-11 and IEC 61643-1.
• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.
• Complete device consists of a base part and pluggable module.
• High arresting capacity up to 12.5 kA (10/350μs)
• The visual indication of green and red indicator flags shows the proper functioning of every protective circuit and varistor.
Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Characteristics:
| | BR-12.5M-275 3+1 |
| SPD classification according to EN 61643-11 | Type 1 + Type 2 |
| SPD classification according to IEC 61643-11 | Class I + Class II |
| Max. continuous operating a.c. voltage Uc | 275V/255V |
| Lightning impluse current (10/350us) Iimp | 12.5kA/25kA |
| Nominal discharge current (8/20us) (L-N / N-PE) In | 20kA / 25kA |
| Max. discharge current (8/20us) (L-N / N-PE) Imax | 50kA / 100kA |
| Voltage protection level (L-N / N-PE) Up | ≤1.3kV / ≤1.5kV |
| Voltage protection level 5kA (L-N / N-PE) Up | ≤1.0kV / ≤1.5kV |
| Max. backup fuse | 160A gG |
| Response time (L-N / N-PE) tA | ≤25ns / ≤100ns |
| Operating temperature range Tu | -40℃—80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Protection degree | IP20 |
| Enclosure material | Thermal plastic UL94-V0 |
Dimension:
Iimp 12.5kA Type 1+2 Surge Protective Device Class I+II SPD Application:
• These arresters are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 0-2 (according to IEC 1312-1 and EN 62305) for equipotential bonding and elimination of transient over voltage that originates during atmospheric discharges or switching processes.
• Class B+C surge protector is perfect for any kind of building being it residential, commercial, industrial and so on, these devices work as a complete protection device.
• The combination of BR-12.5M is suitable for use in TNS and TT systems.
Certification:
Shipping:
About us:
Wenzhou Britec Electric Co., Ltd. has been committed to low voltage surge arrester products’ designing, R&D, manufacturing and marketing for 17 years. Britec factory locates in Wenzhou, Zhejiang, China. We own well-trained workers, rich experience production and R&D engineers. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as CE, CB, TUV. Our team can develop and test new products to meet variable markets’ tailored demands. Britec branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 50+ countries and districts.
FAQ:
Q1: We have our own design, do you offer OEM & ODM servies?
A: Yes, please share with us your detailed requirements and drawing.
Q2: How about the MOQ requirement for surge protection?
A: 100pcs.
Q3: If sample fee can be free or refundable?
A: Sample fee (wihin USD150) can be refunded after receiving firm order.
