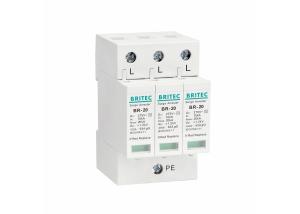

AC Surge Arresters 3P 10KA~20KA Surge Protection Device 275V SPD Surge Protectors
AC Surge Arresters 3P 10KA~20KA Surge Protection Device General:
1: BR-20 series SPD is suitably used in the TT, TN-S, TN-C, IT, TN-C-S and etc. power supply system of AC 50/60HZ.
2: Class II / Type 2 surge arrester.
3: Suitable for system power protection, such as power distribution cabinet, switch cabinet, switch cabinet, AC distribution board, etc.
4: Consisting of a base part and 3 MOV plug-in protection modules.
5: This SPD to protect from direct and indirect lightning impulse and other transient over voltage
AC Surge Arresters 3P 10KA~20KA Surge Protection Device Technology characteristic:
| | BR-20 3P |
| Max. continuous operating a.c. voltage Uc | 275V |
| Nominal discharge current (8/20us) In | 10kA |
| Max. discharge current (8/20us) Imax | 20kA |
| Voltage protection level Up | ≤1.2kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 63A gG |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermal plastic UL94-V0 |
| Dimension | 3mods |
| Test standards | IEC 61643-1 |
Dimension:
AC Surge Arresters 3P 10KA~20KA Surge Protection Device Feature:
- The core parts are metal oxide varistor components with high discharge capacity.
- For using in the lightning protection zones concept at boundary 1-2.
- Low residual voltage and quick response.
- Surge Protection Devices (referred to as SPD’s) provide protection against surge current resulting from direct or indirect lightning strikes or similar surge voltages.
- Reliable control.
- The SPD functions to conduct the surge voltage / current to earth and effectively prevents the destruction of downstream equipment.
- With remote signaling contact for control device.
- Plug in replacement module unit allows for easy replacement when necessary.
- Fault indication via red mark in the inspection window.
AC Surge Arresters 3P 10KA~20KA Surge Protection Device Application:
• It is used to protect the branch distribution of intelligent building, electric power, communication, security and other industries
• Surge protective devices are used for lightning and overvoltage protection in AC50/60Hz, 230/400V.
