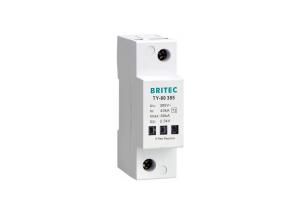

SPD Factory 1P 80KA Lightning Induction Arrester Key Information:
• Pole: 1P, 2P, 3P, 4P, 1+1, 3+1.
• The internal components have accurate chips, and better thunder protection
• Voltage: AC 275V/320V/385V/420V
• Simple maintenance and convenient use.
• kA: 40kA—80kA.
• With strict quality control and quality assurance, high safety factor, can be used with peace of mind
• Width: 27mm per pole.
• Installation Method: Rail installation
• kV: Up≤2.0V--2.5KV.
• Scope of Application: Electrical.
| Model Name | TY-80 385 1P |
| Brand | BRITEC |
| Product Type | Surge Protection Device |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max. Continuous Voltage Uc | 385V |
| Max. discharge current (8/20µs) Imax | 80kA |
| Norminal discharge current (8/20µs) In | 40kA |
| Voltage protection level Up | ≤2.3kV |
| Max. backup fuse | 250A gG |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Manufacturer Guarantee | 2 Years Guarantee |
| No. of Phases | Single-Phase |
| Number of Poles | one pole |
| Operation temperature range | -40 ~ +80 degree |
| Remote control contacts | Optional |
SPD Factory 1P 80KA Lightning Induction Arrester General:
• TY-80 series surge arrester mainly applies at power line of AC 50Hz/60Hz, rated operational voltage 230V and 400V to limit instantaneous over-voltage (lightning induction and switching over-voltage).
• Protection Type: Level 2
• It makes the protected electrical device and parts lower one level at occasion of higher over-voltage category, and lower down the voltage further when applied at terminal to protect devices.
• Response Time: 25ns.
SPD Factory 1P 80KA Lightning Induction Arrester Application:
Widely used in sub-distribution box.
Our Services:
1) Reply inquiry in 24 hours.
2) Answer your question detailed.
3) Freight forwarder: faster, safer, and convenient.
4) Please kindly inform us which items you are interested & the reasonable price will be provided you upon.
Company profile:
Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.
Our certificate:
Packing&Shipping:
Our products will be packed as follow: box inside, carton outside~
Shipping: By sea, by air or by express up to customer
FAQ:
1.Q: What is the MOQ of an order?
A: We accepts 1 unit as trial order.
2.Q: What are your payment methods?
A: T/T, 30% in advance, 70% balance before delivery.
3.Q: What is the delivery time?
A: It takes about 20 days usually after receipt of your deposit. Please check with us if available stock.
4.Q: How about customization?
A: ODM/OEM business partner will be warmly welcome. Please contact us for more details.
5.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing city, Zhejiang province.
