BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector

  • 1
  • 2
  • 3

Brand Name : BRITEC

Model Number : BR-12.5M 2P

Certification : TUV/CB/CE/ROHS/ISO9001

Place of Origin : China

MOQ : 1 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 50000 Piece/Pieces Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : EXPORT PACKING

Price : surge protective device

Item Name : surge arrester 12.5kA

Model Numbers : BR-12.5M 2P

Product Type : QS

EN type : T1+T2

Configuration : 2p

Place of Origin : Wenzhou

Response time : 25ns

MOQ : 2 PCS

Contact Now

2p 12.5kA T1 surge arrester Surge Protective Devices single phase spd

We can produce according to your requirements.

Contact us get the lowest price

T1 surge arrester Features:

BRITEC type 1 and type 1+2 are designed to discharge high current surges without any destruction of the installation. This surge protective device is chararcterized by its capacity to withstand impulse current with 10/350 µs wave form which simulate direct impact coming from a natural lightning current. Type 1 and Type 1+2 SPDs are placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

T1 surge arrester Technology characteristic:

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector

BR-12.5M 2P
Max. continuous operating a.c. voltage Uc 275V
Lightning impulse current (10/350us) Iimp 12.5kA
Nominal discharge current (8/20us) In 20kA
Maximum discharge current (8/20us) Imax 50kA
Voltage protection level Up ≤1.3kV
Response time tA ≤25ns
Max. backup fuse 160A
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards

IEC 61643-11, EN 61643-11

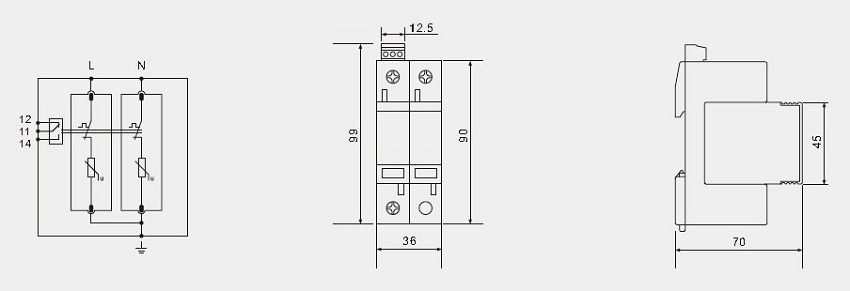

1p surge arrester Dimension:

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector

1p surge arrester Application:

Application-optimized and prewired combined lightning current.
Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).

1p surge arrester Certificate:

CB, CE, TUV,RoHS Certificate:

BRITEC BR-12.5M 2P 12.5kA Single Phase Spd lightning arrester surge protective device thunder protector
