Main character
1. One-phase protection for TN-S system
2. Pluggable module, easy for installation and maintenance
3. High discharge capacity, quick response
4. Double thermal disconnection devices, providing more reliable protection
5. Green window will change when fault and also provide remote alarm control at the same time
| Model Name | BR275-60 2P |
| Brand | BRITEC |
| Product Type | Surge Protection Device |
| SPD dassification according to EN61643-11 | Type 2 |
| SPD dassification according to IEC61643-11 | Class II |
| Max. Continuous Voltage Uc | 275V |
| Max. discharge current (8/20µs) Imax | 60kA |
| Norminal discharge current (8/20µs) In | 30kA |
| Voltage protection level Up | ≤1.5kV |
| Max. backup fuse | 160A gG |
| Response time tA | ≤25ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Manufacturer Guarantee | 5 Years Guarantee |
| No. of Phases | Single-Phase |
| Number of Poles | two pole |
| Operation temperature range | -40 ~ +80 degree |
| Remote control contacts | Optional |

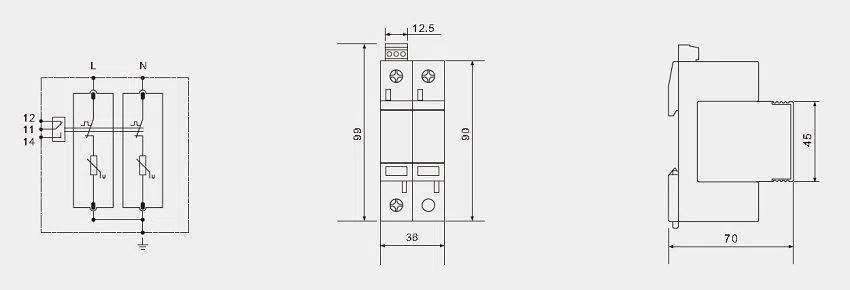

Dimension:
BRITEC Type 2 Class C Surge Protection Application:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 2,Class II
Pole number:1P,2P,3P,4P,1+1,3+1 optional
surge protectors are used to guard sensitive equipments from voltage spike
BRITEC Type 2 Class C Surge Protection Advantage:
• Low residual voltage and quick response.
• Reliable control.
• Fault indication via red mark in the inspection window.
Noted:
We also can supply more of product for low--voltage power system lightning protection, surge protective device with Imax=40kA ,80kA, 100kA, 200kA etc.
Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V
Our Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Type 2 + Type 3 surge protection device.
DC (pv, solar) surge protection device.
