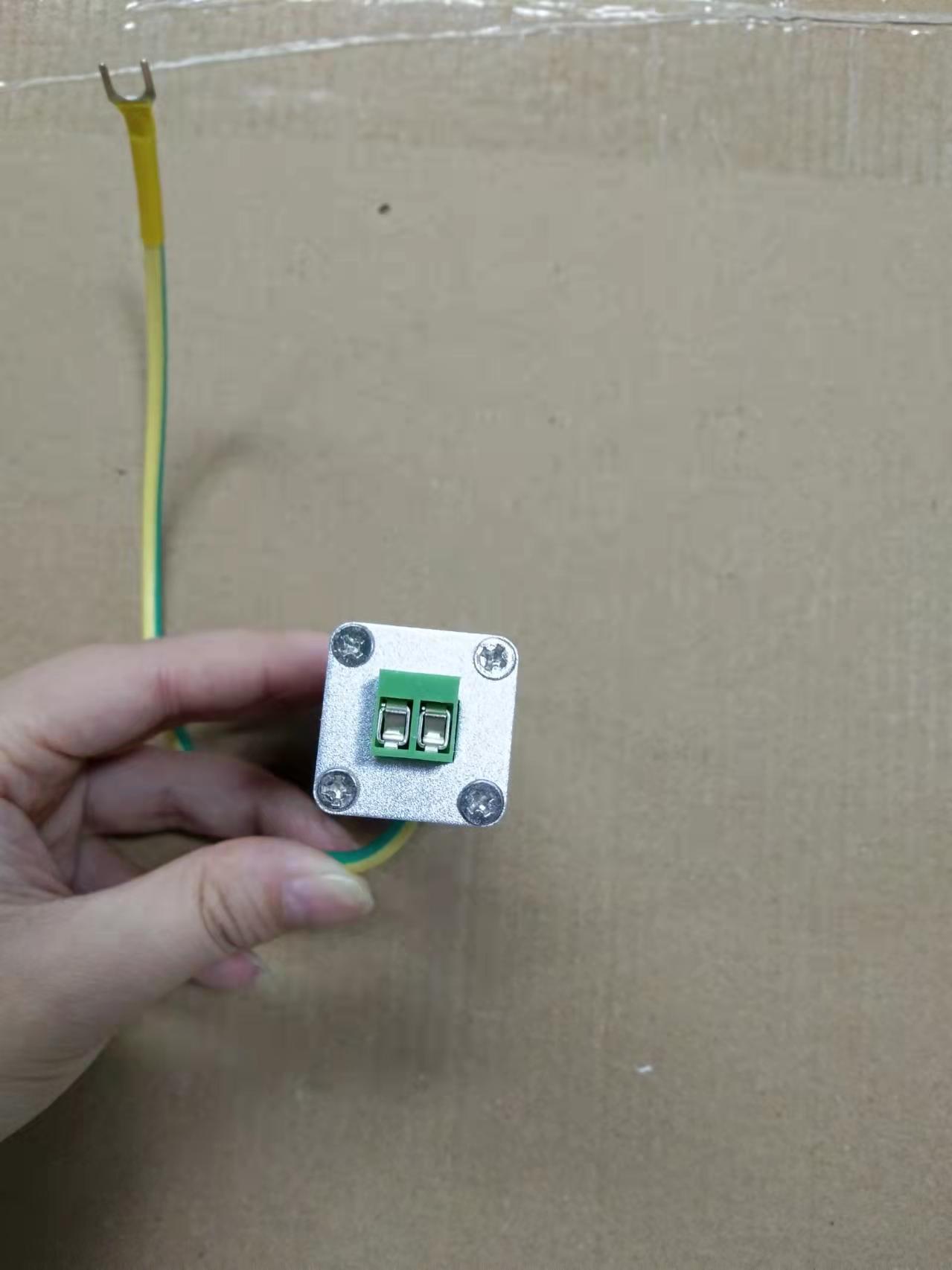

Data Line 1-Port Data Surge Protector
BRITEC is a real AC&DC surge protection device (SPD) manufacturer, also provide OEM/ODM service. some of the products approved by TUV, CB, CE, EAC according to IEC 61643-11:2011 and EN 61643-11:2012.
network surge protective device includes 100M
ethernet network lightning arrester and Gigabit ethernet network
lightning arrester.It is suitable for lightning surge or electrostatic protection of network switches,network cameras and other important equipment transmitted by wired network.
SPD Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Product features 1.Core components adopt famous brands with reliable quality
2.residual low voltage
3.Simple installation and convenient maintenance
Product Details:
| | BRGI-2L-12 |
| Test standards | IEC 61643-21 |
| Nominal voltage Un | 12V |
| Max. continuous operating d.c. voltage Uc | 15V |
| Max. continuous operating a.c. voltage Uc | 11V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤40V |
| Voltage protection level [line-PG] Up | ≤600V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection input / output | Terminal Block |
| Bandwidth | 10 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Technology characteristic:
Application:
• Protect expensive equipment against surges and transients entering a building on exposed
transmission lines.
• Protect electrical devices from voltage spikes.
• Protect high-speed communication network from lightning over-voltage, transient over-voltage and
static discharge.
Advantage:
• Fast energy absorption when over-voltage occurs.
• Advanced manufacturing process.
• Excellent performance on discharge current.
• Fast response time.
• Professional manufacturer.
Factory:
Certification:
FAQ:
Q1. Are you a trading company or manufacturer?
A: Manufacturer with factory!
Q2. What kinds of products do you produce?
A: It covers AC surge protection, DC lightning protection, data surge protector, LED lightning
arrester,etc.
Q3.Is customized available?
A: Yes, please offer your required specs.
Q4. Do you accept OEM service?
A: YES!
Q5. What's your Delivery Time?
A: Normally 15-30days
